Spring 中的资源获取

Spring 中的资源获取

参考博客

SpringBoot--本地文件_51CTO博客_springboot下载文件到本地

Spring Resource和ResourceLoader源码解析_nju.拈花的博客-CSDN博客

【小家Spring】资源访问利器---Spring提供的Resource接口以及它的常用子类源码分析_方向盘(YourBatman)的博客-CSDN博客

【小家Spring】资源访问利器---Spring使用ResourceLoader接口便捷的获取资源(ResourcePatternResolver、ResourceLoaderAware)_方向盘(YourBatman)的博客-CSDN博客

简单的源码分析

Resource

全包名是 org.springframework.core.io.Resource

Resource 继承 InputStreamSource 接口

InputStreamSource 接口也是 Spring 定义的,全包名为 org.springframework.core.io.InputStreamSource,用于描述一个可以作为 InputStream 的源的对象。

从底层资源 (如文件或类路径资源) 的实际类型进行抽象,得出的顶层的资源描述接口,即:Resource 是对多种不同资源的一个统一封装。如果资源物理存在,则可以为这个资源打开 InputStream 读取流,但对于某些类型的资源只能返回 URL 或 File 对象。实际的行为是特定于实现的。

关于文件或类路径资源介绍,参考《Java 中的常见路径和资源获取.md

Resource 接口中几个比较常用方法

Resource 的默认实现如下:

其中最常用的,还是 AbstractResource 这个分支下的类,比如 UrlResourceFileUrlResourceClassPathResourceFileSystemResource,这个我们接下来细研究其使用。

AbstractResource

Resource 接口实现的基础抽象类,包含了一些预先实现的典型的行为,比如

AbstractFileResolvingResource

继承 AbstractResource,主要用于将 URL 解析为 File 对象的资源,例如 UrlResourceClassPathResource

根据 URL 的协议,比如 file: 协议,vfs: 协议,将资源进行相应的解析,

ResourceUtils 中具体的支持的解析协议,

ResourceUtils 我们后面会经常用到,是资源处理的常用工具类。

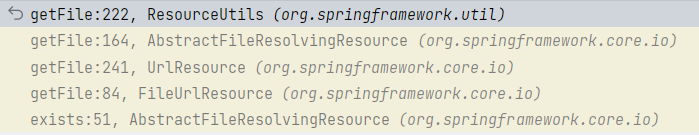

重点看看 exists 方法的实现UrlResourceFileUrlResource 都继承了这个方法来判断资源是否存在,ClassPathResource 则是重写了这个方法

每次使用 Resource 资源之前都应该调用 exists 方法检查一下

@Override
public boolean exists() {
    try {
        // 获取资源的URL
        URL url = getURL();
        // 如果URL指向的是文件系统下的资源,直接判断文件是否存在即可
        if (ResourceUtils.isFileURL(url)) {
            // Proceed with file system resolution
            return getFile().exists();
        }
        else {
            // 如果URL指向的是常规的HTTP地址,则直接发起一个请求,看响应结果
            // Try a URL connection content-length header
            URLConnection con = url.openConnection();
            customizeConnection(con);
            HttpURLConnection httpCon = (con instanceof HttpURLConnection ? (HttpURLConnection) con : null);
            if (httpCon != null) {
                // HTTP方法为 HEAD,只获取响应头信息
                httpCon.setRequestMethod("HEAD");
                // 检查响应,看是不是通的
                int code = httpCon.getResponseCode();
                if (code == HttpURLConnection.HTTP_OK) {
                    return true;
                }
                else if (code == HttpURLConnection.HTTP_NOT_FOUND) {
                    return false;
                }
            }
            if (con.getContentLengthLong() > 0) {
                return true;
            }
            if (httpCon != null) {
                // No HTTP OK status, and no content-length header: give up
                httpCon.disconnect();
                return false;
            } else {
                // Fall back to stream existence: can we open the stream?
                getInputStream().close();
                return true;
            }
        }
    }
    catch (IOException ex) {
        return false;
    }
}

UrlResource

继承 AbstractFileResolvingResource,这是对 java.net.URL 资源定位器(比如我们常见的 HTTP 的 URL 地址)的 Resource 封装,支持解析为 URL 对象(UrlResource#url),然后直接用 URL 对象的输入流来当作资源的输入流,因此可以用来访问 URL 对象本身可以正常访问的任意对象,因此,它支持 http、https、file、ftp、jar 等协议。其 getInputStream() 方法实现如下:

@Override
public InputStream getInputStream() throws IOException {
    URLConnection con = this.url.openConnection();
    customizeConnection(con);
    try {
        // 直接返回内部的URL对象的输入流
        return con.getInputStream();
    }
    catch (IOException ex) {
        // Close the HTTP connection (if applicable).
        if (con instanceof HttpURLConnection) {
            ((HttpURLConnection) con).disconnect();
        }
        throw ex;
    }
}

当使用 file: 协议的时候,也可以解析为 File 对象。此时我们可以使用其子类 FileUrlResource

UrlResource 支持各种方式构造:

实践

经过 UrlResource 的封装,只要知道一个 HTTP 连接或者一个 FTP 链接,就可以直接通过 URL 路径获取 URL 资源,真的非常方便,

UrlResource 可以用来判断 URL 是否能通

public static void main(String[] args) throws IOException {
    //SpringApplication.run(ResourceApplication.class, args);
    // 直接通过URL路径获取URL资源
    UrlResource urlResource = new UrlResource("http://www.baidu.com");
    boolean pageExists = urlResource.exists();
    System.out.println(pageExists);
    if (pageExists) {
        //如果页面存在,直接通过输入流获取页面的内容
        InputStream webPage = urlResource.getInputStream();
        StringBuilder sb = new StringBuilder();
        int len = -1;
        byte[] buff = new byte[1024];
        while ((len = webPage.read(buff)) > 0) {
            String data = new String(buff, 0, len);
            sb.append(data);
        }
        System.out.println(sb);
        // 流用完了一定要关闭
        webPage.close();
    }
    // UrlResource 可以用来判断URL是否能通
    UrlResource blogPage = new UrlResource("https://xiashuo.xyz/");
    boolean blogExists = blogPage.exists();
    System.out.println(blogExists);
}

FileUrlResource

UrlResource 的子类,主要用于进行将 URL 解析成文件(File 实例)时的工作,而且通过实现 WritableResource 接口,可以提供 URL 对应的文件的 getOutputStream,方便用户对文件进行修改。此外,没有重写 UrlResourcegetInputStream 的方法。

这是 DefaultResourceLoader 在解析 URL 路径为 file:… 的资源时使用的资源类。而且因为 FileUrlResource 实现了 WritableResource,所以允许进行类型转化,转换为 WritableResource 类型。

而当我们需要直接从 File 实例或 NIO 的 Path 实例构造资源对象时,请直接使用 FileSystemResource,这个我们后面会提到。

此外,FileUrlResource 提供了两种构建方式,

实践

注意相对路径的起点是当前应用的工作目录。

修改当前 main 方法的 Run/Debug configuration 的 Working Directory 为当前模块的根路径,如果不设置,默认的工作目录是当前模块所在的项目的根路径

在工作目录也就是当前模块的根路径下创建文件 config.properties,不写入任何内容,空着

执行 main 方法

public static void main(String[] args) throws IOException {
    // 路径不需要带前缀 file:
    FileUrlResource fileUrlResource = new FileUrlResource("./config.properties");
    boolean fileExists = fileUrlResource.exists();
    if (fileExists) {
        System.out.println(fileUrlResource.getFile().getCanonicalFile());
        OutputStream outputStream = fileUrlResource.getOutputStream();
        OutputStreamWriter outputStreamWriter = new OutputStreamWriter(outputStream);
        outputStreamWriter.write("application.name = ResourceTest");
        outputStreamWriter.flush();
        // 流用完了一定要关闭
        outputStreamWriter.close();
        outputStream.close();
    }

}

写入之后,文件内容为

application.name = ResourceTest

ClassPathResource

继承 AbstractFileResolvingResource,这是类路径下的资源的 Resource 实现。

可使用给定的 ClassLoader 或给定的 Class 来加载资源。如果类路径资源位于文件系统中,则支持将其解析为 java.io.File,但对于类路径中的第三方 jar 包中的资源,通过 ClassPathResource 依然可以获取,但是无法将其转化为 java.io.File 对象。即 getFile() 返回 null

通过 ClassLoaderClass 来加载类路径下的资源的实践,我们在《Java 中的常见路径和资源获取.md》中尝试过

构造函数:

值得注意的是在只指定路径字符串和类加载器的时候,如果路径字符串的第一个字符是 /,则去掉,因为使用类加载器获取资源的时候,以 / 开头会返回 null,这个我们在《Java 中的常见路径和资源获取.md》中都证实过。Spring 帮我们屏蔽了这个问题。

public ClassPathResource(String path, @Nullable ClassLoader classLoader) {
    Assert.notNull(path, "Path must not be null");
    String pathToUse = StringUtils.cleanPath(path);
    // 使用类加载器获取资源的时候,以`/`开头的路径会返回null,这个我们在《Java中的常见路径和资源获取.md》中都证实过。Spring帮我们屏蔽了这个问题。
    if (pathToUse.startsWith("/")) {
        pathToUse = pathToUse.substring(1);
    }
    this.path = pathToUse;
    this.classLoader = (classLoader != null ? classLoader : ClassUtils.getDefaultClassLoader());
}

将路径字符串解析为 URL 和通过路径字符串获取资源的时候,默认先用 Class 实例进行操作,然后再用类加载器。注意这一点

@Nullable
protected URL resolveURL() {
    try {
        if (this.clazz != null) {
            return this.clazz.getResource(this.path);
        }
        else if (this.classLoader != null) {
            return this.classLoader.getResource(this.path);
        }
        else {
            return ClassLoader.getSystemResource(this.path);
        }
    }
    catch (IllegalArgumentException ex) {
        // Should not happen according to the JDK's contract:
        // see https://github.com/openjdk/jdk/pull/2662
        return null;
    }
}
@Override
public InputStream getInputStream() throws IOException {
    InputStream is;
    if (this.clazz != null) {
        is = this.clazz.getResourceAsStream(this.path);
    }
    else if (this.classLoader != null) {
        is = this.classLoader.getResourceAsStream(this.path);
    }
    else {
        is = ClassLoader.getSystemResourceAsStream(this.path);
    }
    if (is == null) {
        throw new FileNotFoundException(getDescription() + " cannot be opened because it does not exist");
    }
    return is;
}

可以看到,ClassPathResourcegetInputStream 的实现,都是委托给了 Clazz.getResourceClassLoader.getResource

通过 ClassLoaderClass 来加载类路径下的资源的实践,我们在《Java 中的常见路径和资源获取.md》中尝试过。

实践

src\main\resources 下的 application.properties 中编辑内容

spring.application.name=xiashuoDemo

然后编写测试类

public static void main(String[] args) throws IOException {
    ClassPathResource resource = new ClassPathResource("application.properties");
    // 可以将获取到的资源转化为Fiel对象
    File file1 = resource.getFile();
    System.out.println(file1.getCanonicalPath());
    boolean exists = resource.exists();
    System.out.println(exists);
    if (exists) {
        //如果页面存在,直接通过输入流获取页面的内容
        InputStream file = resource.getInputStream();
        StringBuilder sb = new StringBuilder();
        int len = -1;
        byte[] buff = new byte[1024];
        while ((len = file.read(buff)) > 0) {
            String data = new String(buff, 0, len);
            sb.append(data);
        }
        System.out.println(sb);
        // 流用完了一定要关闭
        file.close();
    }
    // --- 获取第三方jar包中的资源 虽然获取的是乱码,但是是可以获取的
    ClassPathResource thirdPartyJarSource = new ClassPathResource("org/springframework/asm/AnnotationWriter.class");
    // 无法将获取到的资源转化为Fiel对象
    //File file2 = thirdPartyJarSource.getFile();
    //System.out.println(file2.getCanonicalPath());
    boolean thirdPartyJarSourceExists = thirdPartyJarSource.exists();
    System.out.println(thirdPartyJarSourceExists);
    if (thirdPartyJarSourceExists) {
        //如果页面存在,直接通过输入流获取页面的内容
        InputStream classFile = thirdPartyJarSource.getInputStream();
        StringBuilder sb = new StringBuilder();
        int len = -1;
        byte[] buff = new byte[1024];
        while ((len = classFile.read(buff)) > 0) {
            String data = new String(buff, 0, len);
            sb.append(data);
        }
        System.out.println(sb);
        // 流用完了一定要关闭
        classFile.close();
    }
}

可以正常输出

E:\IDEAProject\Spring5Framework\Resource\target\classes\application.properties
true
spring.application.name=xiashuoDemo
true
省略乱码

FileSystemResource

继承 AbstractResource,跟 FileUrlResource 类似,不过 FileUrlResource 是基于 URL 的,而 FileSystemResource 是之间基于 FilePath。主要以 NIO 的方式提供流

这是对 java.io.Filejava.nio.file.PathResource 封装,对应着一个文件系统中的一个文件,支持解析为 FileURL,实现的 WritableResource 接口。

FileUrlResource 也实现了 WritableResource 接口。

我感觉 FileSystemResource 得使用,是没有 UrlResource 的使用广泛的

构造函数:

getInputStreamgetOutputStream,都是直接传入 Path 打开 NIO 流。可以看到,FileSystemResource 是基于 NIO 的

@Override
public OutputStream getOutputStream() throws IOException {
    return Files.newOutputStream(this.filePath);
}

@Override
public InputStream getInputStream() throws IOException {
    try {
        return Files.newInputStream(this.filePath);
    }
    catch (NoSuchFileException ex) {
        throw new FileNotFoundException(ex.getMessage());
    }
}
实践

跟前面的使用大同小异

public static void main(String[] args) throws IOException {
    FileSystemResource fileSystemResource = new FileSystemResource("config.properties");
    boolean fileExists = fileSystemResource.exists();
    if (fileExists) {
        System.out.println(fileSystemResource.getFile().getCanonicalFile());
        InputStream inputStream = fileSystemResource.getInputStream();
        StringBuilder sb = new StringBuilder();
        int len = -1;
        byte[] buff = new byte[1024];
        while ((len = inputStream.read(buff)) > 0) {
            String data = new String(buff, 0, len);
            sb.append(data);
        }
        System.out.println(sb);
        // 流用完了一定要关闭
        inputStream.close();
        OutputStream outputStream = fileSystemResource.getOutputStream();
        OutputStreamWriter outputStreamWriter = new OutputStreamWriter(outputStream);
        outputStreamWriter.write("application.name = ResourceTest");
        outputStreamWriter.flush();
        // 流用完了一定要关闭
        outputStreamWriter.close();
        outputStream.close();
    }
}

InputStreamResource

InputStreamResource 把一个 InputStream 封装为 Resource,只有在没有其他特定的 Resource 实现适用时才应该使用此封装。在可能的情况下,首选 ByteArrayResource 或任何基于文件的 Resource 实现,比如 FileUrlResourceFileSystemResource

getInputStream 的实现就是返回其封装的 InputStream,很简单

@Override
public InputStream getInputStream() throws IOException, IllegalStateException {
    if (this.read) {
        throw new IllegalStateException("InputStream has already been read - " +
                "do not use InputStreamResource if a stream needs to be read multiple times");
    }
    this.read = true;
    return this.inputStream;
}

懒得实践了

ByteArrayResource

把一个字节数组封装为 Resource。用于从任何给定的字节数组加载内容,而不必求助于一次性使用的 InputStreamResource。对于从本地内容创建邮件附件特别有用,因为 JavaMail 需要能够多次读取流。

getInputStream 的实现就是为字节数组创建一个 ByteArrayInputStream

@Override
public InputStream getInputStream() throws IOException {
    // 直接使用字节数组构造一个字节数组读取流
    return new ByteArrayInputStream(this.byteArray);
}

懒得实践了

ServletContextResource - web 项目专用

继承 AbstractFileResolvingResource,对 ServletContext 中的资源的 Resource 实现,用于解析 web 应用程序根目录中的相对路径。

这个 web 应用根路径,一般就是指 src/main/webapp,但是在引入 web 启动器的 SpringBoot 项目中,默认是没有配置 web 应用程序根目录的,毕竟 web.xml 都没有了。当然,我们可以手动配置。

始终支持流访问和 URL 访问,但只允许在 web 应用程序在 war:exploded 时进行 java.io.File 访问。

构造函数,只有一个

注意,传入的 path 参数就算不以 / 开头,最后也会在开头强制加上 /

public ServletContextResource(ServletContext servletContext, String path) {
    // check ServletContext
    Assert.notNull(servletContext, "Cannot resolve ServletContextResource without ServletContext");
    this.servletContext = servletContext;

    // check path
    Assert.notNull(path, "Path is required");
    String pathToUse = StringUtils.cleanPath(path);
    // 强制路径以 / 开头
    if (!pathToUse.startsWith("/")) {
        pathToUse = "/" + pathToUse;
    }
    this.path = pathToUse;
}

我们看 exists 方法和 isFile 方法,发现实际上都是委托给 ServletContextgetResource 方法,

ServletContext#getResource 的注释:

返回给定路径映射到的资源的 URL

给定的路径必须以 / 开头,/ 会被解释为相对于(以之为起点)当前 web 应用的根目录(对应这 Maven 目录结构中的 src/main/webapp),或相对于 web 应用的根目录的 /WEB-INF/lib 目录中的 JAR 文件的 /META-INF/resources 目录的相对路径。在搜索 /WEB-INF/lib 中的任何 JAR 文件之前,该方法将首先搜索 web 应用程序的根目录以获得请求的资源。搜索 /WEB-INF/lib 中的 JAR 文件的顺序是未定义的。

这个方法使得 servlet 容器赋予了任何来源的 servlet 都可以访问资源的能力。资源可以位于本地或远程文件系统、数据库或 .war 文件中。

....

这个方法的用途与 java.lang.Class.getResource 不同。Class.getResource 基于类加载器查找资源。ServletContext#getResource 不使用类装入器。

@Override
public boolean exists() {
    try {
        URL url = this.servletContext.getResource(this.path);
        return (url != null);
    }
    catch (MalformedURLException ex) {
        return false;
    }
}

@Override
public boolean isFile() {
    try {
        URL url = this.servletContext.getResource(this.path);
        if (url != null && ResourceUtils.isFileURL(url)) {
            return true;
        }
        else {
            return (this.servletContext.getRealPath(this.path) != null);
        }
    }
    catch (MalformedURLException ex) {
        return false;
    }
}

getInputStream 方法也是如此,委托给 ServletContextgetResourceAsStream 方法,

@Override
public InputStream getInputStream() throws IOException {
    InputStream is = this.servletContext.getResourceAsStream(this.path);
    if (is == null) {
        throw new FileNotFoundException("Could not open " + getDescription());
    }
    return is;
}
实践

web 应用程序根目录结构:

测试代码

@RequestMapping("/getResource")
public String HttpSession(HttpServletRequest request) throws IOException {
    ServletContext application = request.getServletContext();
    // 默认的路径起点是 src/main/webapp
    ServletContextResource servletContextResource = new ServletContextResource(application, "/WEB-INF/templates/index.html");
    File file = servletContextResource.getFile();
    boolean exists = servletContextResource.exists();
    // 省略对文件的读取
    //servletContextResource.getInputStream();
    return "target-application";
}

ResourceUtils - Resource 工具类

其中地工具方法主要分两类,一类是判断当前 URL 指向的资源是不是某种类型的资源,

一类是获取 URL 中的具体资源,

ResourceLoader - 资源加载器

ResourceLoader 是一个用于加载资源 (例如,类路径资源 ClassPathResource 或文件系统资源 FileUrlResource) 的策略接口。

org.springframework.context.ApplicationContext 也就是我们常说的应用上下文需要提供这个加载资源的功能,而且还需要支持 org.springframework.core.io.support.ResourcePatternResolver 即根据模式匹配资源的功能。

DefaultResourceLoader 是一个独立的 ResourceLoader 实现,可以在 ApplicationContext 之外使用,也可以由 ResourceEditor 使用。

当在 ApplicationContext 中运行时,可以使用特定的上下文的 ResourceLoader 实现从 String 中填充 ResourceResource[] 类型的 Bean 属性。

只有两个接口方法

有了 ResourceLoader程序员在获取资源的时候,就可以不去计较使用哪一种类型的 Resource 的实现,直接使用 ResourceLoader.getResource(),传入正确的资源路径,即可获取 Resource

我们在进行本地资源查找的时候,实际上也就这三种情况

其他的比如网络资源,这个不在本地资源查找的范畴之下,可以直接通过对应的资源实现类来处理。比如通过 URLresource 判断网址是否可以 ping 通

具体实现类如下:

可以看到接口实现主要分两类,一类是 DefaultResourceLoader,我们就看 DefaultResourceLoader 怎么用,一类是 ResourcePatternResolver,我们看看 PathMatchingResourcePatternResolverApplicationContext 怎么用。

DefaultResourceLoader

DefaultResourceLoaderResourceLoader 接口的默认实现。这也是我们在源码中,见到的最多的 ResourceLoader 实现类。

ResourceEditor 中有所使用,也是 org.springframework.context.support.AbstractApplicationContext 的父类。当然也可以单独使用。

如果资源位置是一个 URL,将返回一个 UrlResource,如果它是非 URL 路径或 classpath: 开头的 URL,则返回一个 ClassPathResource

protocolResolvers 字段,是一个有序的 Set,表示协议解析链,用于在 getResource 中进行自定义的协议解析。元素类型为 ProtocolResolver

ProtocolResolver 是一个函数式接口,作用是对特定协议下的资源进行处理,我们可以通过在 DefaultResourceLoader 中注册 ProtocolResolver 来实现对自定义协议下的资源的处理。

private final Set<ProtocolResolver> protocolResolvers = new LinkedHashSet<>(4);

如果前面的 ProtocolResolver 成功解析,则直接返回不再解析,所以协议解析链中的协议解析器的顺序很重要,具体的使用看实践小节

继续看 DefaultResourceLoader#getResource 方法,

资源位置的解析顺序是:

  1. 先进行协议解析链解析

  2. 然后进行类路径解析,在类路径中查找

  3. 最后再进行 URL 解析

  4. 如果都不是,还是默认进行类路径解析,在类路径中查找

前面的解析成功,就会直接返回,后面的步骤就不再执行

public Resource getResource(String location) {
    Assert.notNull(location, "Location must not be null");

    // 先通过协议解析链解析资源地址
    for (ProtocolResolver protocolResolver : getProtocolResolvers()) {
        Resource resource = protocolResolver.resolve(location, this);
        if (resource != null) {
            // 如果成功解析,则直接返回不再解析,所以协议解析链中的协议解析器的顺序很重要
            return resource;
        }
    }

    // 以/开头,最终还是返回 ClassPathResource
    if (location.startsWith("/")) {
        return getResourceByPath(location);
    }
    // 直接以 classpath: 开头的路径,最终返回 ClassPathResource
    else if (location.startsWith(CLASSPATH_URL_PREFIX)) {
        return new ClassPathResource(location.substring(CLASSPATH_URL_PREFIX.length()), getClassLoader());
    }
    else {
        try {
            // 尝试将资源地址转化为URL
            // Try to parse the location as a URL...
            URL url = new URL(location);
            // 如果成功将资源地址转化为URL,则进一步判断 是不是文件协议下的url,如果是,则返回FileUrlResource,不是,则返回 UrlResource
            return (ResourceUtils.isFileURL(url) ? new FileUrlResource(url) : new UrlResource(url));
        }
        catch (MalformedURLException ex) {
            // 如果无法将资源地址转化为URL,尝试在类路径下解析
            // No URL -> resolve as resource path.
            return getResourceByPath(location);
        }
    }
}
实践
public static void main(String[] args) {
    // 测试单独使用
    DefaultResourceLoader loader = new DefaultResourceLoader();
    loader.addProtocolResolver((location, resourceLoader) -> {
        // 当使用自定义协议的时候,是无法直接将url字符串转化为 URL对象的
        // 因为虽然可以获取协议名,但是URL.getURLStreamHandler 在根据协议名获取流处理器的时候返回结果为null,抛出异常 MalformedURLException
        URI uri = null;
        try {
            uri = ResourceUtils.toURI(location);
        } catch (URISyntaxException e) {
            throw new RuntimeException(e);
        }
        if (uri == null) {
            return null;
        }
        String protocol = uri.getScheme();
        if (protocol == null || !"ABC".equals(protocol.toUpperCase())) {
            return null;
        }
        // 开始处理 ABC 协议的资源路径
        // 将自定义协议转化为 http协议
        String newLocation = location.replaceAll("abc", "http");
        Resource resource;
        try {
            resource = new UrlResource(newLocation);
        } catch (MalformedURLException e) {
            throw new RuntimeException(e);
        }
        return resource;
    });
    // 获取自定义协议下的资源
    Resource myProtocolResource = loader.getResource("abc://www.baidu.com");
    boolean myProtocolResourceExist = myProtocolResource.exists();
    System.out.println("自定义协议资源是否存在:" + myProtocolResourceExist);
    // 获取类路径下的资源
    Resource classpathResource = loader.getResource("classpath:./application.properties");
    boolean classpathResourceExist = classpathResource.exists();
    System.out.println("类路径下的资源是否存在:" + classpathResourceExist);
    // 获取文件系统下的资源
    Resource fileResource = loader.getResource("file:./config.properties");
    boolean fileResourceExist = fileResource.exists();
    System.out.println("文件系统下的资源是否存在:" + fileResourceExist);
    // 获取类路径下的资源
    Resource onlyNameLocationResource = loader.getResource("application.properties");
    boolean onlyNameLocationResourceExist = onlyNameLocationResource.exists();
    System.out.println("不带任何协议头,则默认在类路径下查找,资源是否存在:" + onlyNameLocationResourceExist);
}

输出

自定义协议资源是否存在:true
类路径下的资源是否存在:true
文件系统下的资源是否存在:true
不带任何协议头,则默认在类路径下查找,资源是否存在:true

注意

当使用自定义协议的时候,是无法直接将 url 字符串转化为 URL 对象的,因为虽然可以获取协议名,但是 URL.getURLStreamHandler 在根据协议名获取流处理器的时候返回结果为 null,抛出异常 MalformedURLException

注意相对路径

FileUrlResourceexists 方法继承自 AbstractFileResolvingResource(具体细节看 AbstractFileResolvingResource 小节),最终会直接获取 URL 指向的 File 实例,通过检查这个 File 实例指向的文件是否物理存在来判断资源存不存在,如果资源路径是 file:./ 开头,这是一个相对路径,因为以相对路径创建 File 实例的时候相对路径的起点就是当前 MainClass 的工作目录,因此,这个相对路径最终会以 System.getProperty("user.dir") 返回的路径为相对路径的起点查找文件,

调用栈:

ResourceUtils#getFile 方法

public static File getFile(URL resourceUrl, String description) throws FileNotFoundException {
    Assert.notNull(resourceUrl, "Resource URL must not be null");
    if (!URL_PROTOCOL_FILE.equals(resourceUrl.getProtocol())) {
        throw new FileNotFoundException(
                description + " cannot be resolved to absolute file path " +
                "because it does not reside in the file system: " + resourceUrl);
    }
    try {
        // 最终还是通过 File 来获取文件
        // 如果路径为相对路径,File文件就会以 System.getProperty("user.dir") 为相对路径的起点查找文件
        return new File(toURI(resourceUrl).getSchemeSpecificPart());
    }
    catch (URISyntaxException ex) {
        // Fallback for URLs that are not valid URIs (should hardly ever happen).
        return new File(resourceUrl.getFile());
    }
}

File 实例的创建跟工作目录的关系,看《Java 中的常见路径和资源获取.md

ResourcePatternResolver

继承 ResourceLoader 接口,增加了方法:

Resource[] getResources(String locationPattern) throws IOException;

ResourceLoader 的基础上更进一步,根据资源位置模板 (例如 ant 样式的路径模式) 解析出多个 Resource 对象。我们可以通过指定位置模板,一次性获取所有匹配路径模板的资源

实现类:

ApplicationContext 实现了 ResourcePatternResolver,可在运行时通过 ResourceLoaderAware 获得。

PathMatchingResourcePatternResolver 是一个独立的实现,可在 ApplicationContext 之外使用,ResourceArrayPropertyEditor 也使用它来填充资源数组 bean 属性。

可以与任何类型的位置模板一起使用例如,/WEB-INF/*-context.xml。然而,输入的位置模版必须与 ResourcePatternResolver 的实现相匹配。ResourcePatternResolver 接口只是指定转换方法,而不是指定特定的模式格式。

PathMatchingResourcePatternResolver

实现 ResourcePatternResolver 接口,能够将指定的资源位置路径解析为一个或多个匹配的资源(Resource 对象)。资源位置路径可以是到目标资源的一对一映射的简单路径,也可以包含特殊的 classpath*: 前缀和/或内部 ant 风格的正则表达式 (使用 Spring 的 AntPathMatcher 工具进行匹配)。后两者都是有效的通配符。

AntPathMatcher 的匹配规则,看《UrlPathHelper+PathMatcher 简单解析.md

匹配方式(简单看看即可):

接下来解析一下 PathMatchingResourcePatternResolver 的源码

主要有两个核心属性

// 本质上还是要委托给 resourceLoader 进行资源的查找,比如 getResource 方法就是委托给 resourceLoader 的 getResource方法
// 这个属性可以在构造函数中传入,也可以不传入,此时默认为 DefaultResourceLoader
private final ResourceLoader resourceLoader;
// 用于资源的路径匹配 具体用法看 看《UrlPathHelper+PathMatcher简单解析.md》
// 默认初始化为 AntPathMatcher,当然也可以通过 setPathMatcher方法进行更改,不过一般都不会修改,没有必要
private PathMatcher pathMatcher = new AntPathMatcher();

getResource 方法的实现实际上就是委托给 resourceLoader 属性,现在详细说说 getResources 方法的实现,看看是不是如上文注释所说。

@Override
public Resource[] getResources(String locationPattern) throws IOException {
    Assert.notNull(locationPattern, "Location pattern must not be null");

    // 以`classpath*:`打头
    if (locationPattern.startsWith(CLASSPATH_ALL_URL_PREFIX)) {
        // 把 CLASSPATH_ALL_URL_PREFIX 后面那部分截取出来,看看是否是模版(包含通配符,比如 * 和 ?  就是模版,否则不是)
        if (getPathMatcher().isPattern(locationPattern.substring(CLASSPATH_ALL_URL_PREFIX.length()))) {
            // a class path resource pattern
            // 是模板 ,那就交给这个方法,这个是个核心方法   这里传入的是locationPattern
            return findPathMatchingResources(locationPattern);
        }
        else {
            // all class path resources with the given name
            // 如果不是模板,那就完全匹配。去找所有的类路径中的资源,path匹配上就行
            return findAllClassPathResources(locationPattern.substring(CLASSPATH_ALL_URL_PREFIX.length()));
        }
    }

    // 不是以`classpath*:`打头的
    else {
        // 支持到tomcat的war:打头的方式
        // 注意,如果 locationPattern 不以任何协议开头(不包含 : ),就是一个常规的路径,比如config/aaa/bbb/*.txt,那么,此时的prefixEnd就是0,依然有效
        int prefixEnd = (locationPattern.startsWith("war:") ?  locationPattern.indexOf("*/") + 1 :
                locationPattern.indexOf(':') + 1);
        if (getPathMatcher().isPattern(locationPattern.substring(prefixEnd))) {
            return findPathMatchingResources(locationPattern);
        }

        // 如果啥都不打头,那就当作一个正常的处理,委托给ResourceLoader直接去处理
        else {
            // a single resource with the given name
            return new Resource[] {getResourceLoader().getResource(locationPattern)};
        }
    }
}

// 通过 ClassLoader 中查找所有的的路径匹配的资源,委托给 doFindAllClassPathResources
protected Resource[] findAllClassPathResources(String location) throws IOException {
    String path = location;
    if (path.startsWith("/")) {
        path = path.substring(1);
    }
    Set<Resource> result = doFindAllClassPathResources(path);
    if (logger.isTraceEnabled()) {
        logger.trace("Resolved classpath location [" + location + "] to resources " + result);
    }
    return result.toArray(new Resource[0]);
}

protected Set<Resource> doFindAllClassPathResources(String path) throws IOException {
    Set<Resource> result = new LinkedHashSet<>(16);
    ClassLoader cl = getClassLoader();
    // 直接委托给 ClassLoader 的 getResources 方法,返回 URL
    Enumeration<URL> resourceUrls = (cl != null ? cl.getResources(path) : ClassLoader.getSystemResources(path));
    // 依次遍历所有的 URL,构建成 UrlResource 添加到返回的Set中
    while (resourceUrls.hasMoreElements()) {
        URL url = resourceUrls.nextElement();
        // convertClassLoaderURL 实际上就是根据 URL构建了 UrlResource
        result.add(convertClassLoaderURL(url));
    }
    if (!StringUtils.hasLength(path)) {
        // The above result is likely to be incomplete, i.e. only containing file system references.
        // We need to have pointers to each of the jar files on the classpath as well...
        addAllClassLoaderJarRoots(cl, result);
    }
    return result;
}

// 根据Pattern去匹配资源,处理通配符的匹配
protected Resource[] findPathMatchingResources(String locationPattern) throws IOException {
    // 确定以locationPattern进行资源匹配时的根文件夹。
    // 比如locationPattern=classpath:META-INF/spring.factories  得到classpath*:META-INF/
    // 若是classpath*:META-INF/ABC/*.factories 得到的就是 classpath*:META-INF/ABC/
    // 简单的说,就是截取第一个不是patter的地方的前半部分
    String rootDirPath = determineRootDir(locationPattern);
    // 以locationPattern进行资源匹配时的根文件夹的后半部分,也就是包含通配符的部分,比如根据前面的例子就是:*.factories
    String subPattern = locationPattern.substring(rootDirPath.length());

    // 这个递归就厉害了,继续调用了getResources("classpath*:META-INF/")方法,因为其中包含通配符,所以会走 findAllClassPathResources方法,或者 getResourceLoader().getResource
    // 相当于把该文件夹匹配的所有的资源(注意:可能会比较多的),最后在和patter匹配即可
    // 比如此处:只要jar里面有META-INF目录的  都会被匹配进来
    Resource[] rootDirResources = getResources(rootDirPath);
    Set<Resource> result = new LinkedHashSet<>(16);
    // 遍历每一个根文件夹处理根文件夹下的资源
    for (Resource rootDirResource : rootDirResources) {
        // resolveRootDirResource是留给子类去复写的。但是Spring没有子类复写此方法,默认实现是啥都没做
        rootDirResource = resolveRootDirResource(rootDirResource);
        URL rootDirUrl = rootDirResource.getURL();

        // 这个if就一般不看了  是否为了做兼容
        if (equinoxResolveMethod != null && rootDirUrl.getProtocol().startsWith("bundle")) {
            URL resolvedUrl = (URL) ReflectionUtils.invokeMethod(equinoxResolveMethod, null, rootDirUrl);
            if (resolvedUrl != null) {
                rootDirUrl = resolvedUrl;
            }
            rootDirResource = new UrlResource(rootDirUrl);
        }


        // 支持vfs协议(JBoss)
        if (rootDirUrl.getProtocol().startsWith(ResourceUtils.URL_PROTOCOL_VFS)) {
            result.addAll(VfsResourceMatchingDelegate.findMatchingResources(rootDirUrl, subPattern, getPathMatcher()));
        }

        // 是否是jar文件或者是jar资源(显然大多数情况下都是此情况)
        else if (ResourceUtils.isJarURL(rootDirUrl) || isJarResource(rootDirResource)) {
            // 把rootDirUrl, subPattern都交给doFindPathMatchingJarResources去处理
            result.addAll(doFindPathMatchingJarResources(rootDirResource, rootDirUrl, subPattern));
        }

        // 不是Jar文件(那就是本工程里字的META-INF目录)
        // 那就没啥好说的,直接给个subPattern去匹配吧,一般都是进行文件资源的查找
        else {
            result.addAll(doFindPathMatchingFileResources(rootDirResource, subPattern));
        }
    }

    // 最终转换为数组返回。 注意此处的result是个set,是有去重的效果的
    return result.toArray(new Resource[0]);
}

// 确定资源匹配的根文件夹。
protected String determineRootDir(String location) {
    // 如果以协议开头,那就从协议后面开始算,如果不以协议开头,那就直接从0也就是第一个字符开始算
    int prefixEnd = location.indexOf(':') + 1;
    // rootDirEnd 一开始就是到 location 的末尾
    int rootDirEnd = location.length();
    // 不断从后往前缩短路径直到不包含通配符
    while (rootDirEnd > prefixEnd && getPathMatcher().isPattern(location.substring(prefixEnd, rootDirEnd))) {
        // 如果截取的字符串依然包含通配符,则从后往前缩短一层路径
        // PS :每层路径通过 / 隔开
        rootDirEnd = location.lastIndexOf('/', rootDirEnd - 2) + 1;
    }
    if (rootDirEnd == 0) {
        rootDirEnd = prefixEnd;
    }
    // 注意,是从0开始,而不是从 prefixEnd 开始,也就是(如果有的话)也会带上协议,比如file:、classpath:
    return location.substring(0, rootDirEnd);
}

protected Set<Resource> doFindPathMatchingJarResources(Resource rootDirResource, URL rootDirURL, String subPattern) {
    ...
    // 这个方法就源码不细说了,有点长
    //Find all resources in jar files that match the given location pattern
    // 就是去这个jar里面去找所有的资源(默认利用Ant风格匹配)
    //此处用到了`java.util.jar.JarFile`、`ZipFile`、`java.net.JarURLConnection`等等
    // 路径匹配:getPathMatcher().match(subPattern, relativePath) 使用的此方法去校对
}

// Find all resources in the file system that match the given location pattern
// 简单的说,这个就是在我们自己的当前的文件系统里找
protected Set<Resource> doFindPathMatchingFileResources(Resource rootDirResource, String subPattern)
        throws IOException {

    // rootDir:最终是个绝对的路径地址,带盘符的。来代表META-INF这个文件夹
    File rootDir;
    try {
        rootDir = rootDirResource.getFile().getAbsoluteFile();
    } catch (IOException ex) {
        return Collections.emptySet();
    }
    // FileSystem  最终是根据此绝对路径 去文件系统里找
    return doFindMatchingFileSystemResources(rootDir, subPattern);
}

// 这个比较简单:就是把该文件夹所有的文件都拿出来dir.listFiles(),然后一个个去匹配
// 备注:子类`ServletContextResourcePatternResolver`复写了此方法~
protected Set<Resource> doFindMatchingFileSystemResources(File rootDir, String subPattern) throws IOException {
    if (logger.isDebugEnabled()) {
        logger.debug("Looking for matching resources in directory tree [" + rootDir.getPath() + "]");
    }
    // 遍历根目录下的文件,和subPattern进行一一匹配
    Set<File> matchingFiles = retrieveMatchingFiles(rootDir, subPattern);
    Set<Resource> result = new LinkedHashSet<>(matchingFiles.size());
    for (File file : matchingFiles) {]
        // 最终用FileSystemResource把File包装成一个Resource
        result.add(new FileSystemResource(file));
    }
    return result;
}

简单分析一下过程,其实主要就分四种情况

现在来看看 findPathMatchingResources 的逻辑

  1. 首先获取资源查找路径的根路径(根路径不包含通配符,所以根路径实际上是固定路径)

  2. 然后获取资源查找路径中,根路径后面的带通配符的路径

  3. 查找所有根路径对应的资源

  4. 遍历每一个根路径,获取根路径下的所有资源(根据资源类型分情况)跟带通配符的路径进行匹配,匹配上的资源最终返回

实践
public static void main(String[] args) throws IOException {
    ResourceLoader resourceLoader = new DefaultResourceLoader();
    Resource resource = resourceLoader.getResource("classpath:META-INF/spring.factories");
    // 理论上应该是哟很多个的,但是这里只找到一个。
    // jar:file:/D:/Program-Dev/m2/repository_nexus_local/org/springframework/boot/spring-boot/2.7.5/spring-boot-2.7.5.jar!/META-INF/spring.factories
    System.out.println("----------------------------------- ResourceLoader -----------------------------------");
    System.out.println(resource.getURL());
    System.out.println(resource.exists());

    System.out.println("----------------------------------- ResourcePatternResolver -----------------------------------");
    PathMatchingResourcePatternResolver resourcePatternResolver = new PathMatchingResourcePatternResolver();
    // classpath:META-INF/spring.factories 表示只用找在一个jar包中找,找到即可返回,所以结果使一个
    // classpath*:META-INF/spring.factories 表示去所有的类路径下找,包括当前模块的编译输出路径和引用的jar包
    Resource[] resources0 = resourcePatternResolver.getResources("classpath:META-INF/spring.factories");
    System.out.println("start with classpath:"+resources0.length);
    Resource[] resources1 = resourcePatternResolver.getResources("classpath*:META-INF/spring.factories");
    System.out.println("start with classpath*:"+resources1.length);

    // 还能使用Ant风格进行匹配  太强大了:
    // 查看类路径下所有的`META-INF/*.factories` 能匹配上的所有文件
    Resource[] resources = resourcePatternResolver.getResources("classpath*:META-INF/*.factories");
    System.out.println("classpath* plus ant-style path: "+resources.length);
    // 查看类路径下指定包下的所有class类,比如我的
    Resource[] resourcesAll = resourcePatternResolver.getResources("classpath*:xyz/xiashuo/**/*.class");
    System.out.println("classpath* plus ant-style path: "+resourcesAll.length);

    System.out.println("----------------------------------- ResourcePatternResolver for fileSystem resource -----------------------------------");
    // 也就是说,之前在 ResourceLoader.getResource方法中使用的路径,加上通配符就能在 ResourcePatternResolver.getResources 中使用,相当方便
    Resource[] fileResources = resourcePatternResolver.getResources("file:./doc/*");
    System.out.println("classpath* plus ant-style path: "+fileResources.length);
    for (Resource fileResource : fileResources) {
        boolean isFile = fileResource.isFile();
        if (isFile) {
            File file = fileResource.getFile();
            System.out.println(file.getPath());
        }
    }
}
总结

实际上我们使用 PathMatchingResourcePatternResolver 也就四种情况

ApplicationContext - 重点

ApplicationContext 继承了 ResourcePatternResolver 接口,可直接使用 getResourcegetResources 方法,非常方便。

Spring Bean 可以通过实现 ResourceLoaderAware 获取一个全局的 ResourceLoader(实际上就是 ApplicationContext 自身),然后可以非常方便地查询资源。非常的简单。

实践
public static void main7(String[] args) throws IOException {
    // 直接用 ConfigurableApplicationContext 效果是一样的。方便了,终于知道为什么要在 ApplicationContext 上实现那么多东西了,都是为了方便
    ConfigurableApplicationContext context = SpringApplication.run(ResourceApplication.class, args);
    Resource resource = context.getResource("classpath:META-INF/spring.factories");

    Resource[] resources0 = context.getResources("classpath:META-INF/spring.factories");
    System.out.println("start with classpath:"+resources0.length);
    Resource[] resources1 = context.getResources("classpath*:META-INF/spring.factories");
    System.out.println("start with classpath*:"+resources1.length);

    //
    //context.getResource();
    Resource[] resources = context.getResources("classpath*:META-INF/*.factories");
    System.out.println("classpath* plus ant-style path: "+resources.length);
    // 查看类路径下指定包下的所有class类,比如我的
    Resource[] resourcesAll = context.getResources("classpath*:xyz/xiashuo/**/*.class");
    System.out.println("classpath* plus ant-style path: "+resourcesAll.length);
    //context.getResources()
    Resource[] fileResources = context.getResources("file:./doc/*");
    System.out.println("classpath* plus ant-style path: "+fileResources.length);
    for (Resource fileResource : fileResources) {
        boolean isFile = fileResource.isFile();
        if (isFile) {
            File file = fileResource.getFile();
            System.out.println(file.getPath());
        }
    }
}

输出

start with classpath:1
start with classpath*:3
classpath* plus ant-style path: 3
classpath* plus ant-style path: 1
classpath* plus ant-style path: 3
E:\IDEAProject\Spring5Framework\Resource\.\doc\aaa.txt
E:\IDEAProject\Spring5Framework\Resource\.\doc\bbb.txt
E:\IDEAProject\Spring5Framework\Resource\.\doc\ccc.txt

总结

最开始的时候,我们要获取资源,要么手动通过创建 File 实例来获取资源,要么只能通过 Class 实例或者 ClassLoadergetResourcegetResources 方法,如果是互联网资源,就得手动创建 URL 实例。

参考《Java 中的常见路径和资源获取.md

然后 Spring 开始从中抽象出一个顶级接口 Resource,同时将我们之前的各种资源都包装成 Resource 的一个实现类,包括 File、ClassPath、URL 等,这样资源的管理就开始变得统一起来,然后,Spring 还提供了 ResourceLoader 资源加载器,有了资源加载器,程序员可以完全不用关心底层返回的是哪一种类型的 Resource 的实现,只要传入正确的资源路径,即可获取 Resource 资源,极大的简化了资源的获取操作,而且为了一次性获取多个资源,ResourcePatternResolver 还在 ResourceLoader 的基础上进行了拓展,让其可以通过在资源位置中使用 classpath*: 前缀搭配通配符一次性获取多个资源,而随处可见的应用上下文 ApplicationContext 就实现了 ResourcePatternResolver,因此,通过 ApplicationContextgetResourcegetResources 方法,我们就能非常方便地获取资源了
